Make your Debugger feel Pretty, with help from DotNet Pretty your Debugger*Attribute helper

<gordon's blog/> - Introduction to DotNet Pretty

Some Background on why

Another thing that come out of last weeks training was Visual Studio Debuggers. This lead to me finding the coolest visualizer ever called TPL Dataflow Debugger Visualizer which allows you to easily visualize your TPL Dataflow


Because I found this awesome visualizer I decided that everything while debugging could be awesome if there were more of these so I have created a GitHub project called DotNet Pretty where I plan on creating many visualizers to really try light up the debugging experience.

What is DebuggerDisplayAttribute?

In case you don't know DebuggerDisplayAttribute is used when you want to have a "pretty" representation of the properties in your class when seeing it in the debugger.


It doesn't seem like such a big deal with 1 object but think of how easy it would be to know stuff about objects when they in a list if they each implemented this attribute. Now obviously to use the attribute like this you need to own the object so you can add the attribute and release it.

DotNet Pretty's first contribution

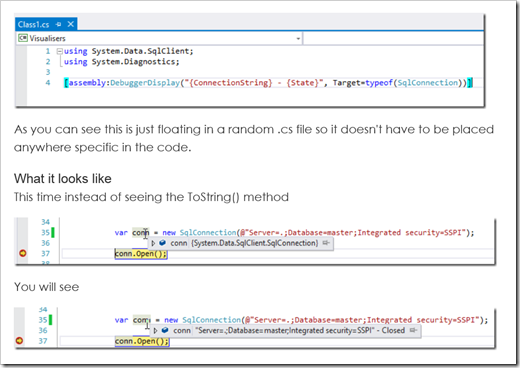

The first contribution to DotNet Pretty is one that was used in the training which allows you to use the DebuggerDisplay Attribute in a different way.


This time you specify the target in the attribute like below...



How is the TDL Dataflow visualizer done?

In short the TPL Dataflow visualizer uses the DebuggerVisualizerAttribute which looks something like below


I will do a in detail post on DebuggerVisualizer Attribute when I add one to DotNet Pretty. For now though you can browse the source code of the TPL Dataflow Debugger Visualizer on CodePlex.

So what's the plan?

My plan at the moment is to find the .net types that I use most and implement visualizers for them. I'm planning on trying to get some nice ones in for TFS objects like Work Items. I'm hoping that others will use this library of visualizers and fork the code and help grow it.


We, well I, really don't much action, press, chatter about Debugger*Attribute usage. That's why when I saw TPL Dataflow Debugger Visualizer I had to queue it up for a Coding4Fun Blog post. Now Gordon's post. Looks like it's time for a little Debugger*Attribute resurgence doesn't it?
